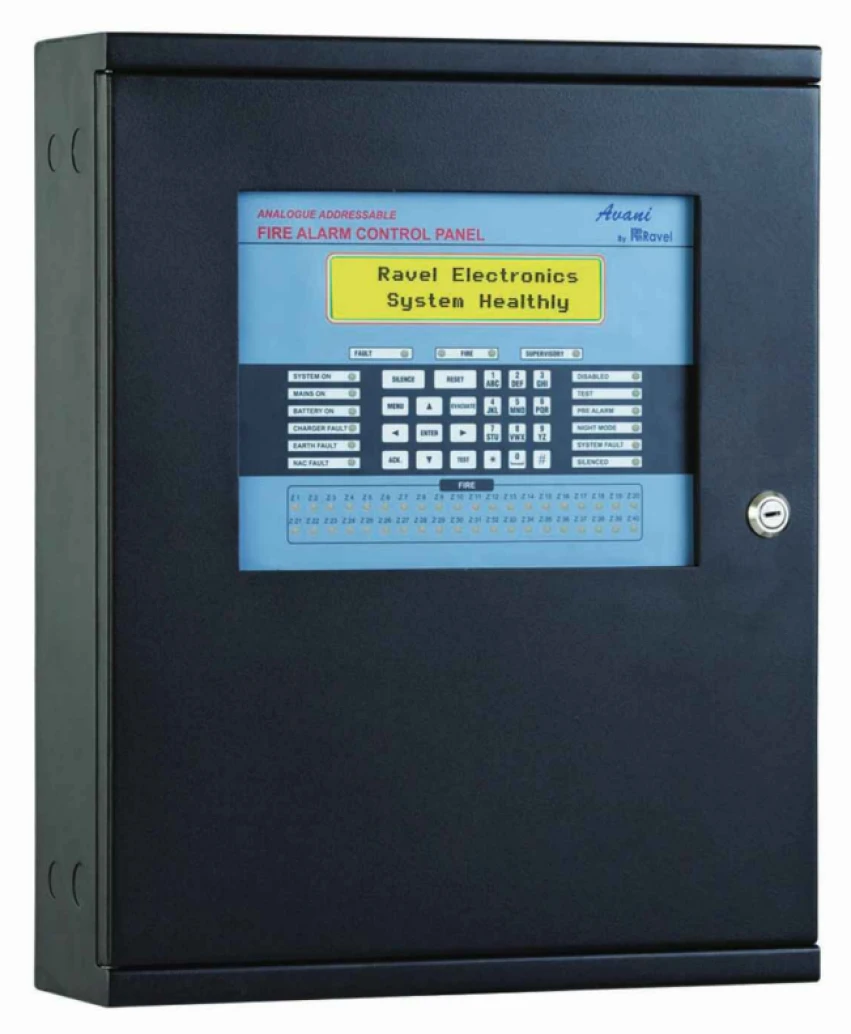

AVANI

Loop Fire Alarm Control Panel

Complies UL 864 9th edition.
Support 1-4 loops and networkable upto 8 panels.
Each loop supports 254 devices in any combination of detectors/modules.
Supports 8128 devices on a single peer to peer network.
Large 160-character LCD display (4 X 40), Touch Keypad.
Degraded Mode facility (In case of CPU fail the loop card work as a conventional FAS).
2000 Event Storage with Real Time Clock.
Upto 192 grouping facility.
USB 2.0 Interface for PC connectivity (field Programmable).
RS 485 Communication facility for Network/ Repeater.
RS232 Communication facility for thermal printers (optional).
Programmable Auto Silence Facility, Programmable Silence Inhibit.
2 programmable Inputs for Evacuate, Remote Fire.
3 programmable Form C relay for Fire, Fault and Supervisory.
2 nos of Supervised Notification Appliance Circuits.
Easy to commission, simple & powerful programming and easy to maintain.
Perfect for small to mid-sized buildings.
Dimensions: Avani (400W x 500H x120D) mm
IP Rating: IP50.

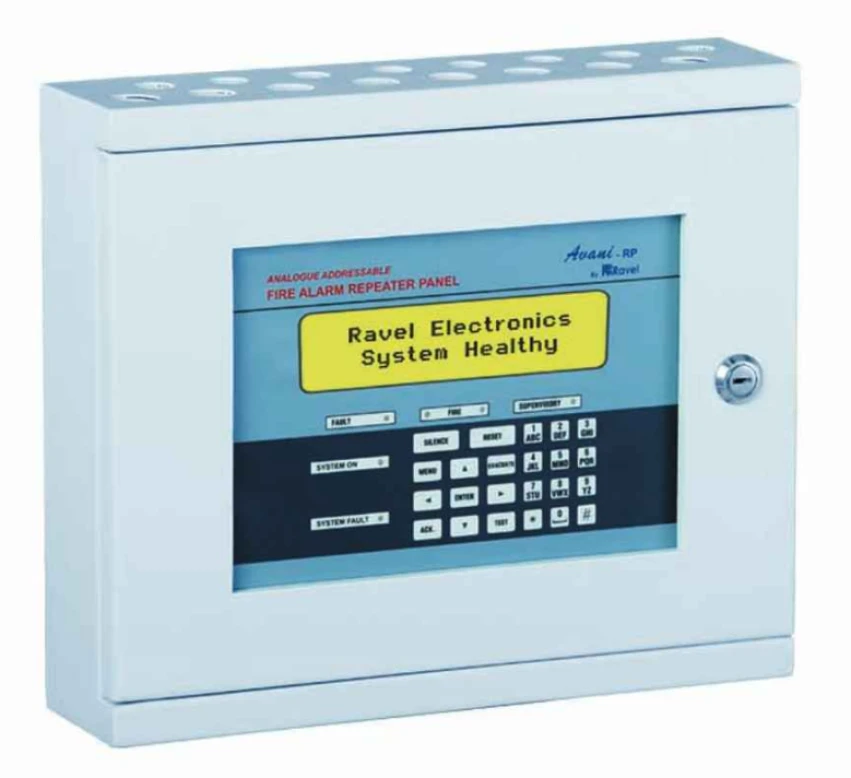

AVANI RP

Addressable Passive Repeater

UL listed (9th Edition).
Touch Keypad.
160 (40X4) character LCD Display.
User selectable display parameters.
2000 Event with Real Time Clock.
RS 485 communication for Network.
Common fire, supervisory, fault LED indication.
IP Rating: IP50.

RE-317 SERIES

Addressable Detectors

UL listed.
Polarity free, Dual LED's, and 360° visibility.
Advanced detection and communication protocol.
Detector's sensitivity can be programmed through FACP.
Sleek low-profile housing design, White Color (RAL 9016).
Regular 100mm base.
Address set by 8-digit DIP switch.
IP Rating: IP42.

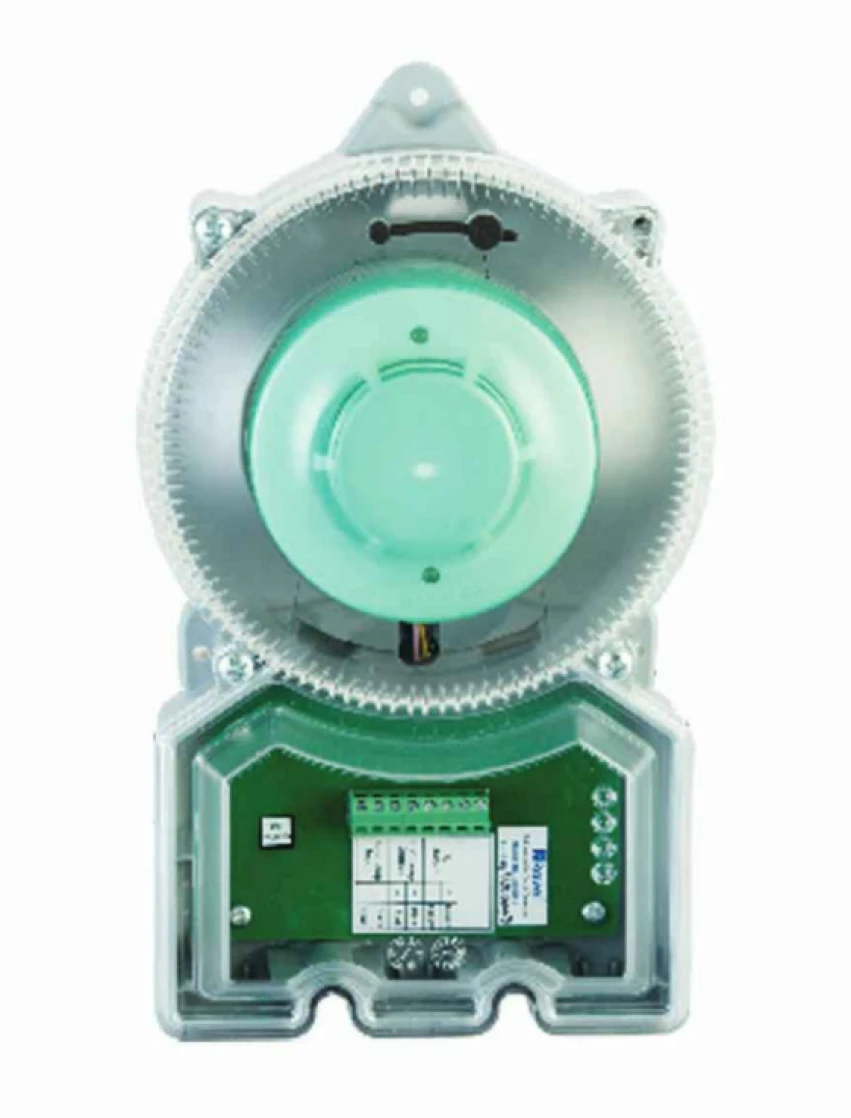

RE-428DU-S

Addressable Duct Detector

High efficient single sampling tube (Aluminium).
Venture tube available in different lengths 1, 2, 5 & 9 feet to match all size of ducts.
Dual LED's for 360° View.
ABS Plastic housing.
Less maintenance, Test Hole on front cover.
Easy dip switch addressing.
Different alarm sensitivity levels.
IP Rating: IP54.

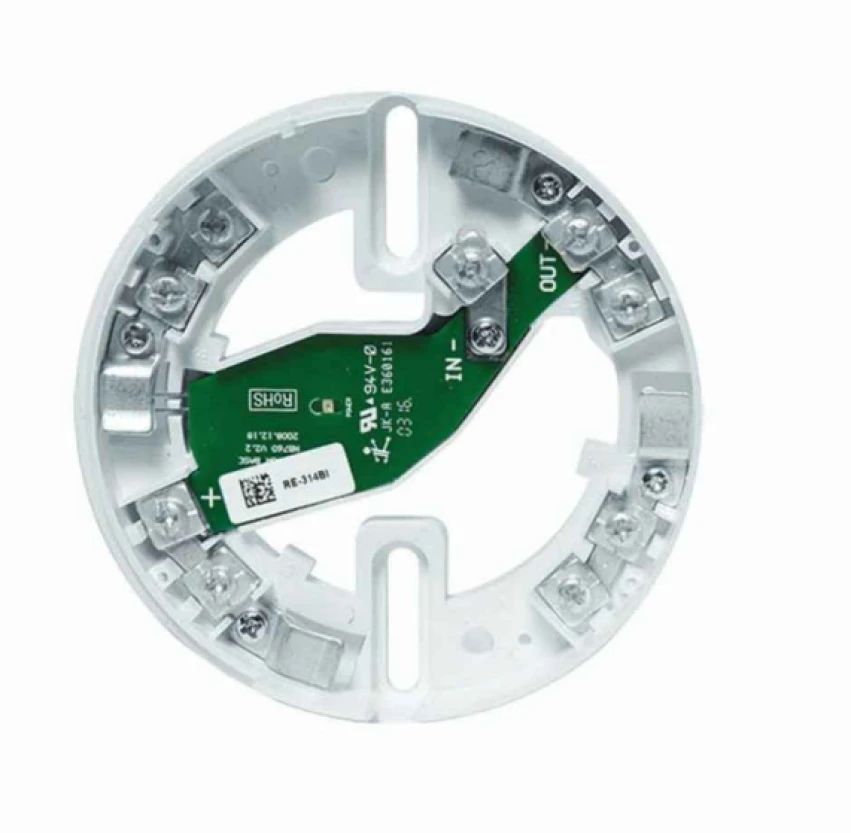

RE-314BI

Isolator Base

An isolator base is designed to protect the panel from wire-to-wire short circuits.
Powered by SLC directly.
Steady LED for short circuit identification,
Auto resetting to normal condition once the short circuit rectified.
Yellow LED indication on the side of the base for short circuit Identification.

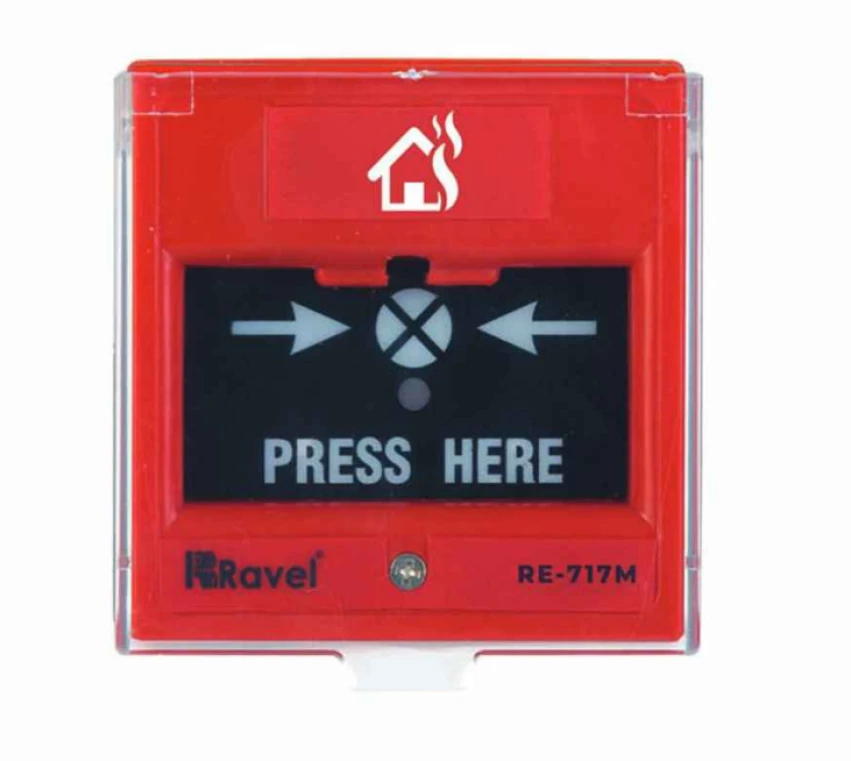

RE-717M

Addressable Manual Call Point

Complies EN54-11.
Inbuilt isolator.
Type "A" Indoor Use.
Resettable by an element kit.
Suitable for flush or surface mounting.
Module Addressing by 8-way DIP Switches.
IP Rating: IP40

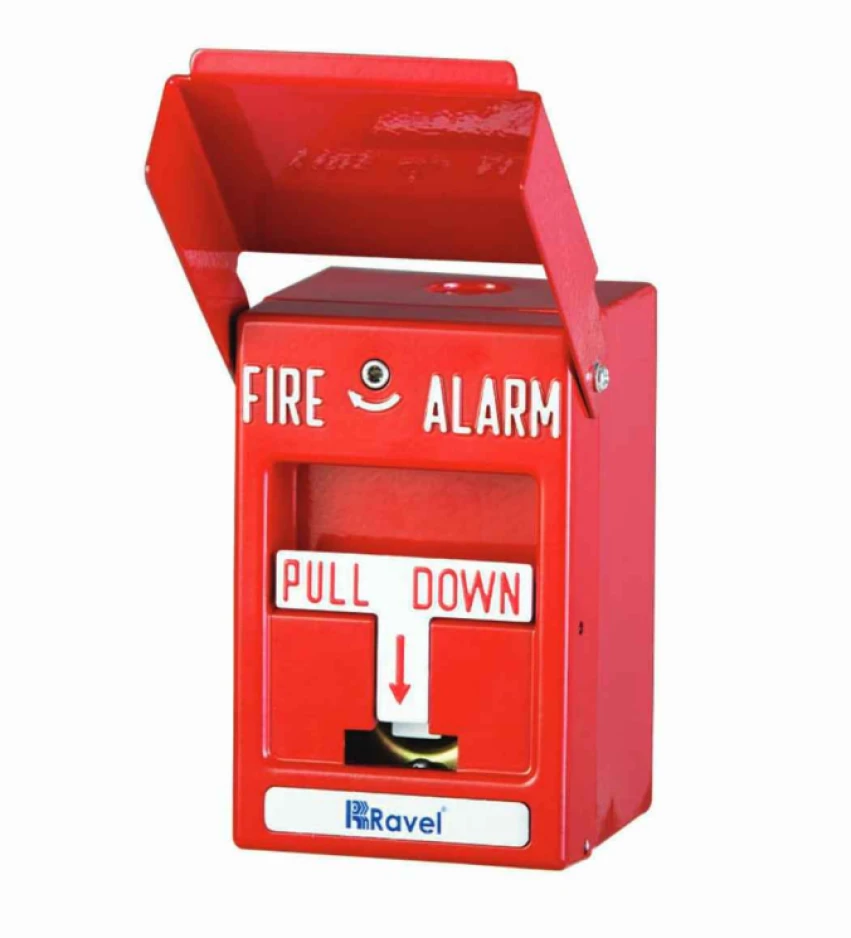

RE-717PD

Addressable Manual Pull Station

UL Listed.
Dual Action pull station.
High-Quality Non-Toxic Die casting
Lift and Pull, Break glass Rod.
Corrosion inhibited surfaces.
Single Gang Mounting.
10 A, 120VAC snap action switch (S.P.S.T.).
Enclosure Complies IP 40 as per IEC standard 60529.
Inbuild isolator.
IP Rating: IP40.

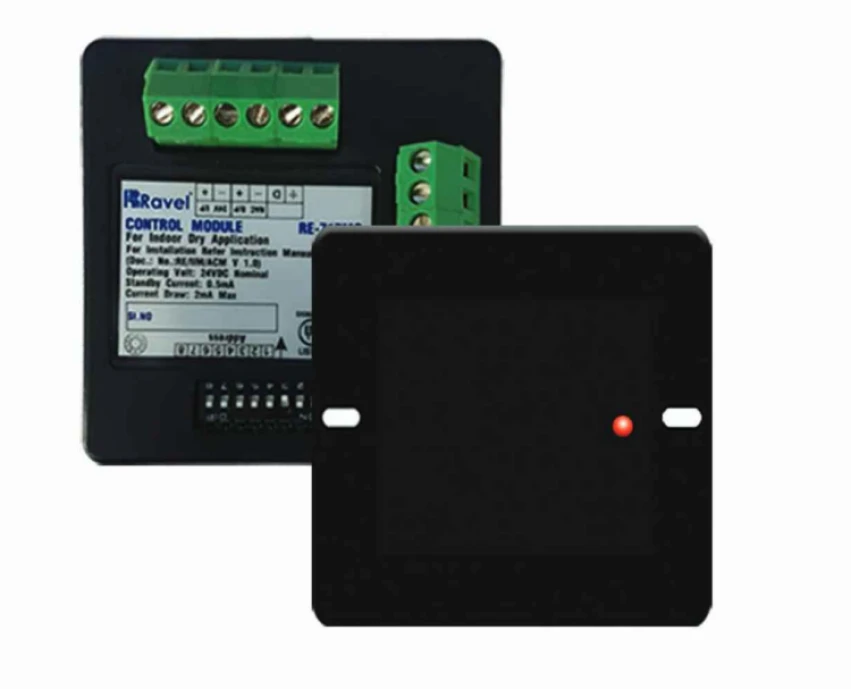

RE-717 SERIES

Addressable Modules

Complies UL 864 9th edition.
Type "A" Indoor Use.
Resettable by an element kit.
Suitable for flush or surface mounting.
Module Addressing by 8-way DIP Switches.
IP Rating: IP50.
BRay
RE-717MM - monitor module.
RE-717MR - relay module.
RE-717MC - control module. RE-717MX- input/ output module.
RE-717MZ - zone interface module. RE-717MI - fault isolator module.

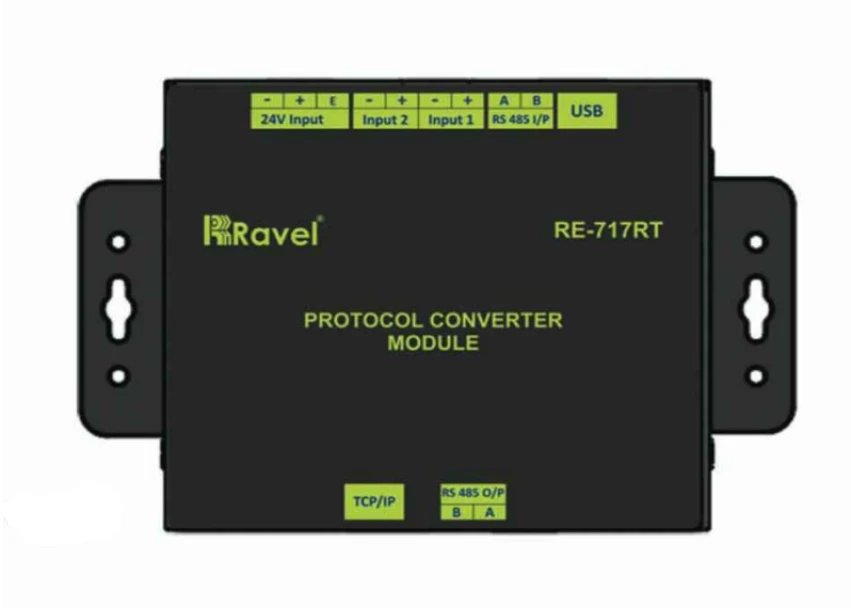

RE-717RT

Protocol Converter

Give full details of inputs and outputs of FACP.
LED for indicating power and transceiver status.
The protocol converter has 3 Inputs USB, RS485, Contact Inputs.
Configurable 2 Output mode RS485 Modbus and TCP/IP (Modbus/ PC Software).
10/100M auto sensing Ethernet mini card for embedded device networking.
TCP Server modes.
Low power consumption.
IP Rating: IP50.

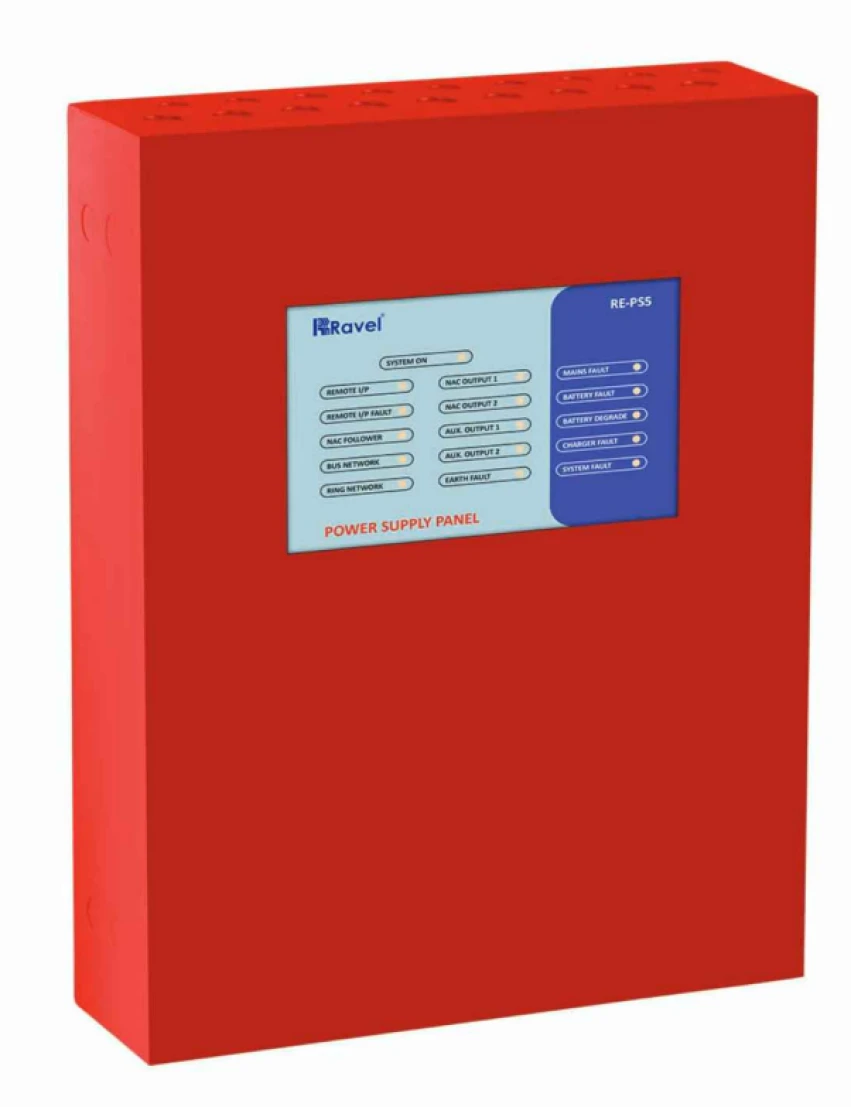

RE-PS5

NAC Extender / Power Supply

Listed to UL 864 10th edition.
Operates on 110 - 230 VAC.
System ON, Mains and standby status indication.
Standby battery backup with built in charging.
One remote alarm input.
One Form-C Common fault relay.
One NAC Follower Input.
2 No's of 24VDC output with short circuit protection.
2 No's of NAC output with short circuit protection.
AC Loss Delay facility.
Auto Silence facility.
Trouble Reminder facility.
All field wiring is power limited and supervised except battery and AC Input.
Inbuilt Keys for Acknowledge & Restart.
Ground fault detection facility @0 Ohms.
Inbuilt RS 485 Bus communication.
Addressing by 8-way DIP switch.
System(field) Configurations using 8-way DIP switch.
IP Rating: IP50.

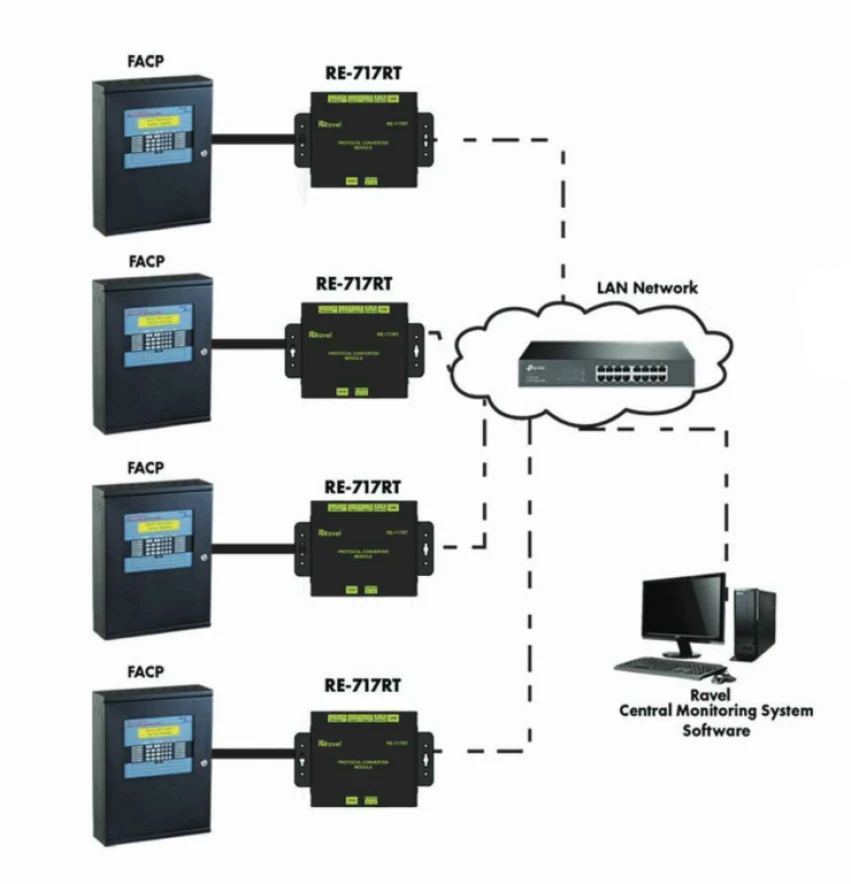

AVANI Soft

Graphic Software

User friendly with windows-based software.
Three Level Multiuser Access.
Multi Mode (Ethernet / USB) Communication Facility.
Facility to monitor and control the fire alarm control panels from a single window.
Unambiguous Visual & Audible alerts for fire and fault conditions.
Pop up for any events like fire, fault, power fault, etc.
Event Fetch from fire alarm control panel facility.
Single/Multi Mode Floor Configuration facility.
Floor Configuration using DWG / DXF Files.
Maximum of 8 AVANI addressable fire alarm control panels shall be monitored
and controlled through the software.

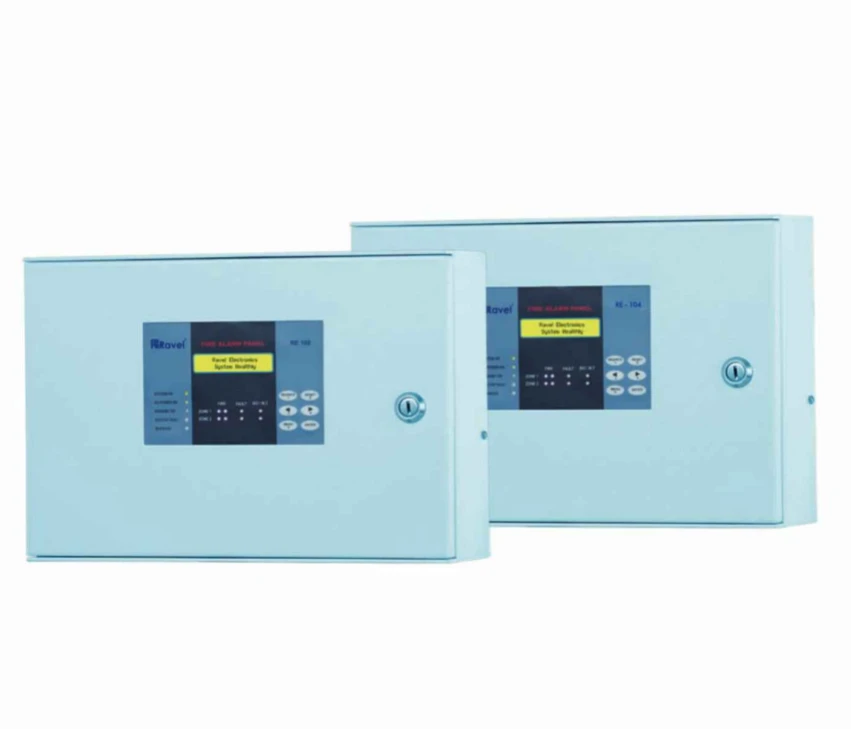

RE-102 / 104

Conventional Panel

2/4 zones conventional Fire alarm panel.
16 X 2 Dot Matrix LCD Display.
Standby battery backup with built in charging.
Switch Mode Power Supply.
Low Battery visual warning with audible tone.
Relay Output for Actuators, for fire and fault.
All zones accept smoke detectors and any normally open contact device.
Zone wise isolation and one man walk test facility.
Zone wise sounder / contact (optional).
CE Approved.
IP Rating: IP50.

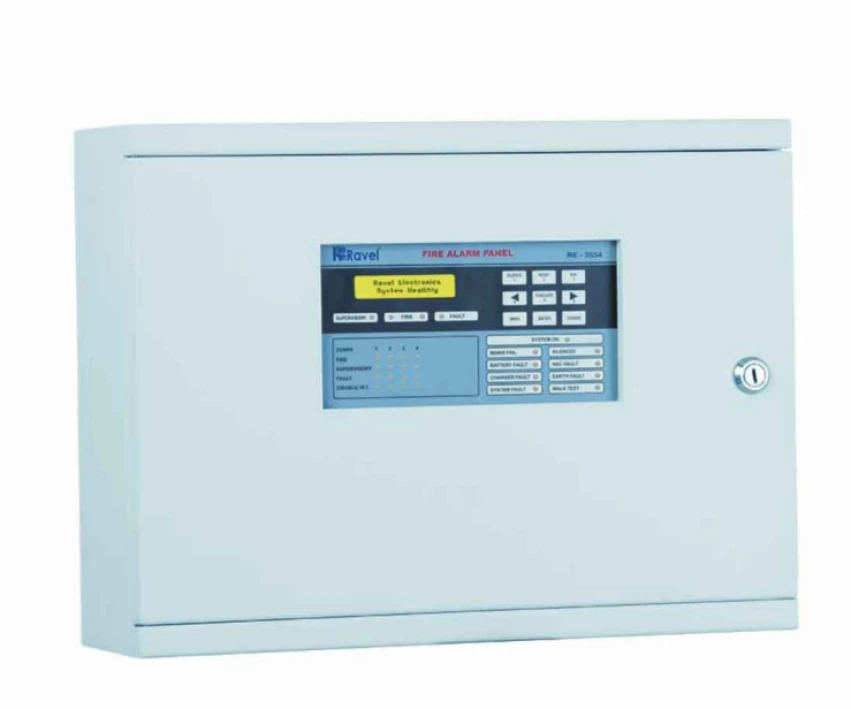

RE-2554 | 2558

4/8 IDC's Control Panel

Complies UL864 (9th Edition).
16x2 Dot Matrix LCD display.
4/8 Class B Style 'B'or Style 'C' Initiating Device Circuit (IDC).
2 Class B Notification Appliance Circuits (NAC).
NAC shall be programmed as silenceable or non-silenceable.
Form C relays for fire, fault and supervisory.
Zone isolation facility with loop voltage cut off.
Standby (battery) backup 24VDC power supply with built in charger.
Programmable trouble reminder facility.
IP Rating: IP50.

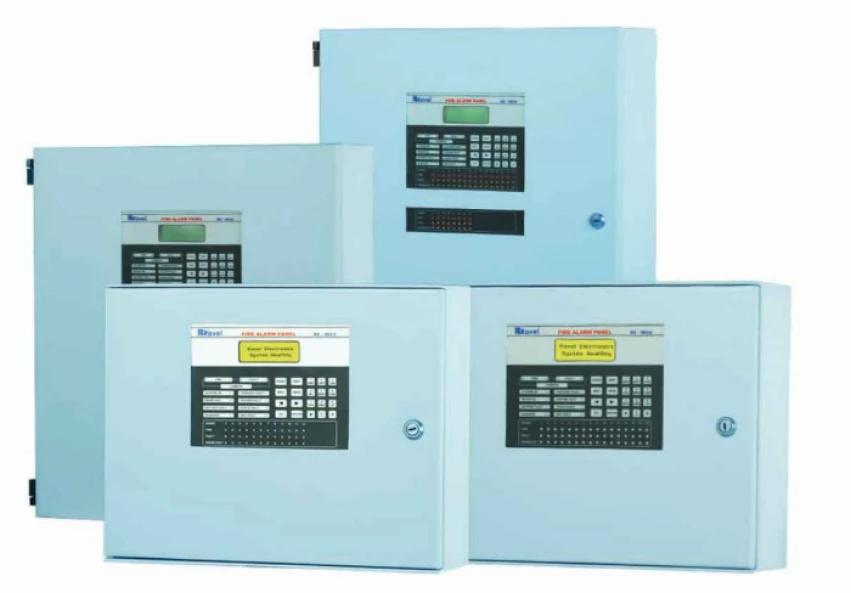

RE-900 SERIES

12-128 IDC's Control Panel

Zones available: 12, 16, 20, 24, 32, 48, 64,96 and 128.
RE-2554 2558
4/8 IDC's Control Panel
Facility to connect Public Address System (PA) through RS-485 Communication.
Peer to Peer network facility.
20 x 4 dot matrix LCD display.
Touch keypad for user friendly operation.
Class- B, Style B/C Initiating Device Circuit (IDC).
Class B Notification Appliance Circuits (NAC).
1000 Event storage with RTC.
Complies UL864 (9th Edition).
16x2 Dot Matrix LCD display.
4/8 Class B Style 'B'or Style 'C' Initiating Device Circuit (IDC).
2 Class B Notification Appliance Circuits (NAC).
NAC shall be programmed as silenceable or non-silenceable.
Form C relays for fire, fault and supervisory.
Zone isolation facility with loop voltage cut off.
Standby (battery) backup 24VDC power supply with built in charger.
Programmable trouble reminder facility.
IP Rating: IP50.
RS 485 Communication facility.
TCP/IP facility (Optional).
MODBUS for Building Management System integration (Optional).
PC software (optional).
Maximum 16 panels can be connected to a single network.
CE Approved and NFPA -72 Standard.
IP Rating: IP50.

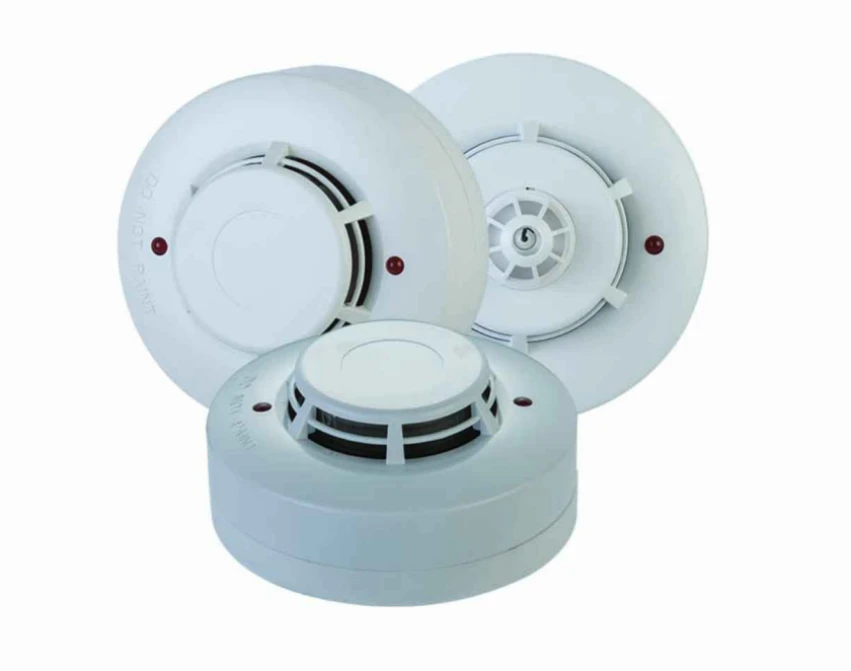

RE-316 SERIES

Conventional Detectors

UL listed.
3 models covering optical smoke, heat & multi-criteria (smoke and heat) available.
Dual LED's for 360° visibility.
Polarity free wiring.
Advanced detection technique.
Easy to install.
Sleek low-profile housing design, White Color (RAL 9016).
Regular 100mm base.
IP Rating: IP42.

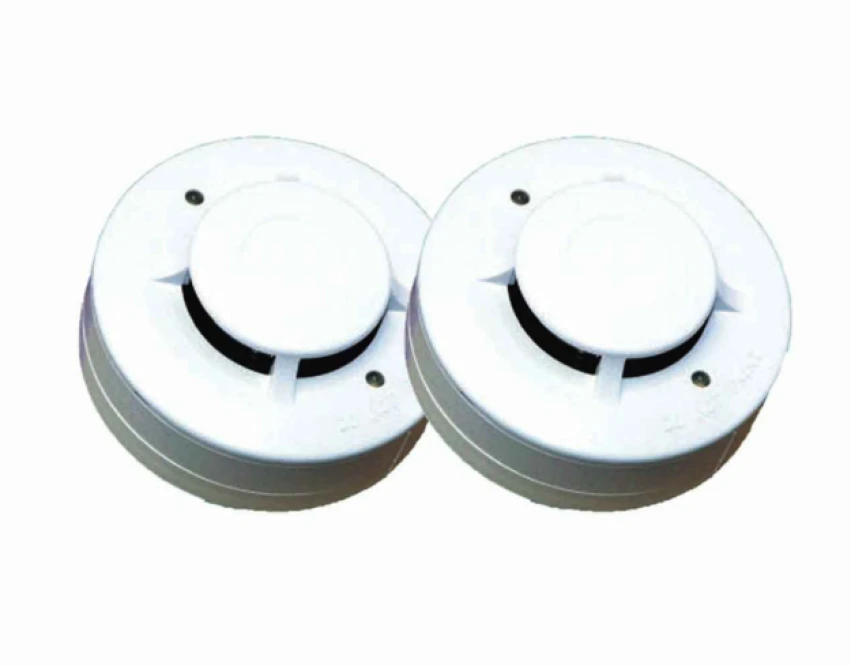

RE-326 SERIES

Conventional Detectors

CE Approved, EN-54 Standard.
Dual LED's for 360° visibility.
Advanced detection and communication protocol.
Easy installation and maintenance.
Sleek low-profile housing design, White Color (RAL 9016).
Regular 100mm Base.
IP Rating: IP42.

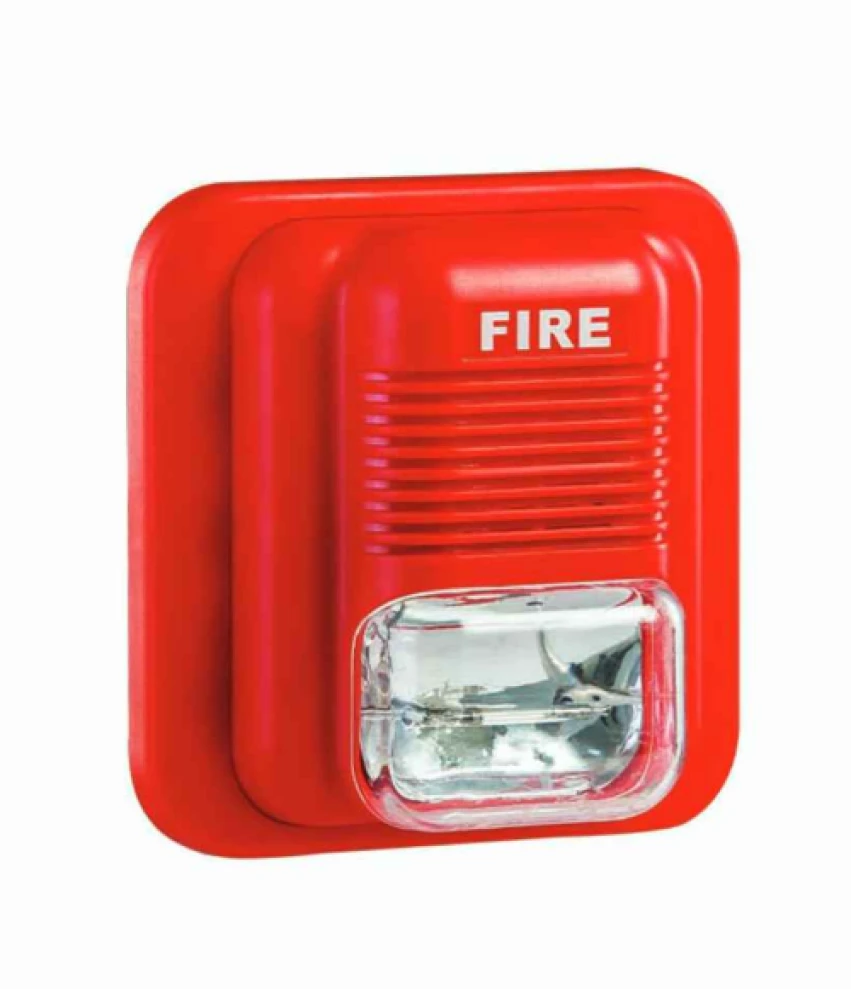

RE-25SS

Conventional Sounder Strobe

CE Certified.
Ceiling/Flush Mount.
ABS plastic material
Low current consumption device.
Complies NFPA 72 standard.
3 type of field configurable tone settings.
100db @3meter distance.
24VDC Operating Voltage.
IP Rating: IP40.

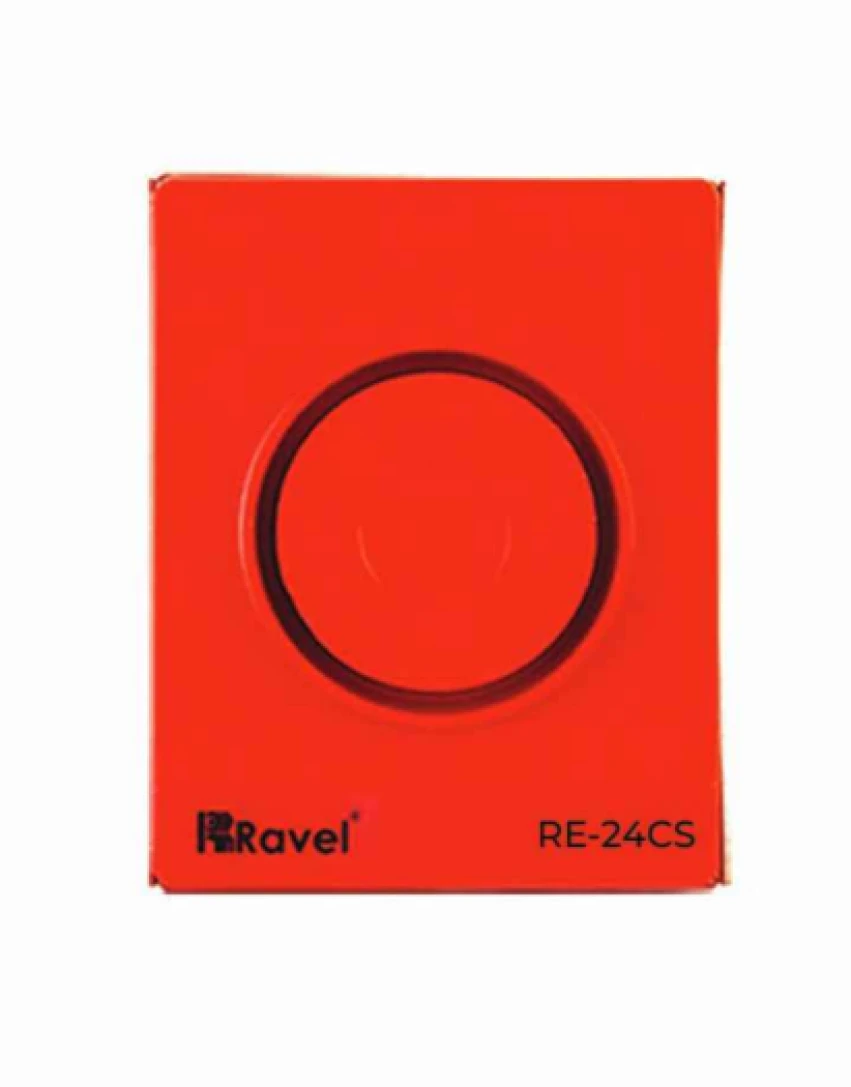

RE-24CS

Conventional Sounder

CE Certified.
Slim and Sleek.
Ravel
Reliability at reach
10
Wall or Ceiling mountable.
Sounder with Back Box.
24VDC Operation.
Used in Fire, Burglar & Emergency Alarm System.
IP Rating: IP40.

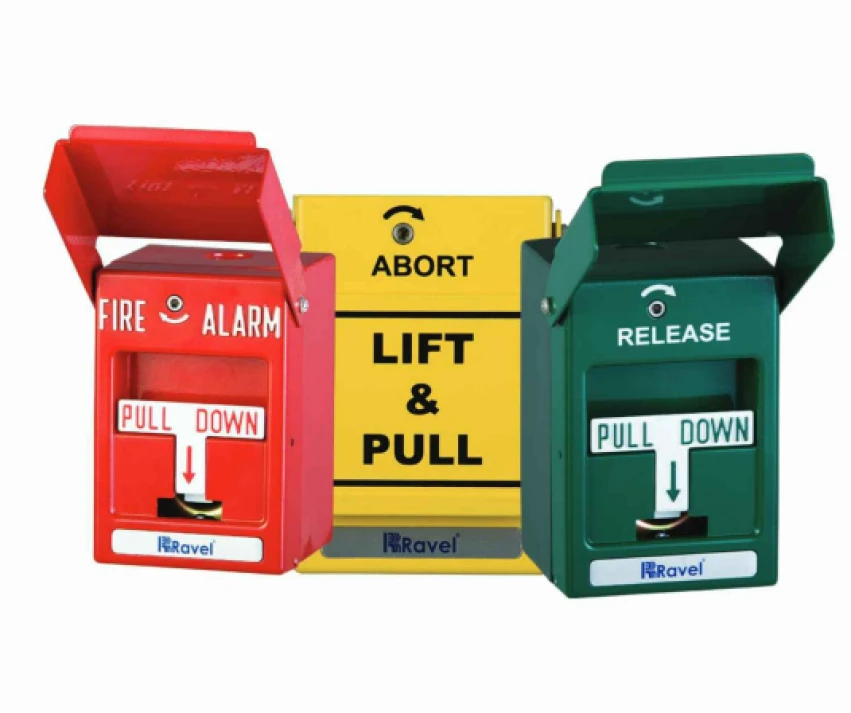

RE-716M Series

Manual Call Point

Operates on 24 VDC.
Resettable by a key.
ABORT
FIRE
EMERGENCY
RELEASE
Single or Dual action.
Alarm Status is indicated by RED colour LED. PRESS HER
Green Coloured for Emergency Release.
PRESS HERE
PRESS HERE
RRavel Ravel
Yellow Coloured for Abort. Ravel
1 No's of NO & NC Output.
IP Rating: IP40

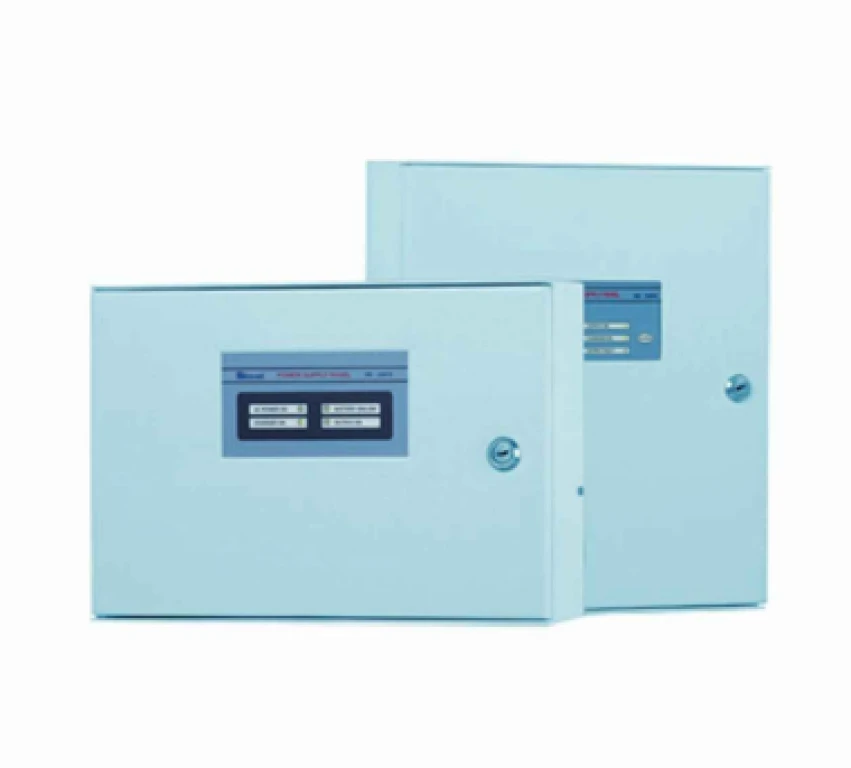

RE-2APS & RE-5APS

Power Supply

Operates on 120 - 220 VAC, 60/ 50 Hz +10%, -15%.
Battery backup with built in charging.
Low battery visual warning with audible tone.
DC Output indication.
Lock and key for authorized access.
Replaceable Fuse for DC output.
Auto resettable fuses are provided for AC and battery.
IP Rating: IP50.

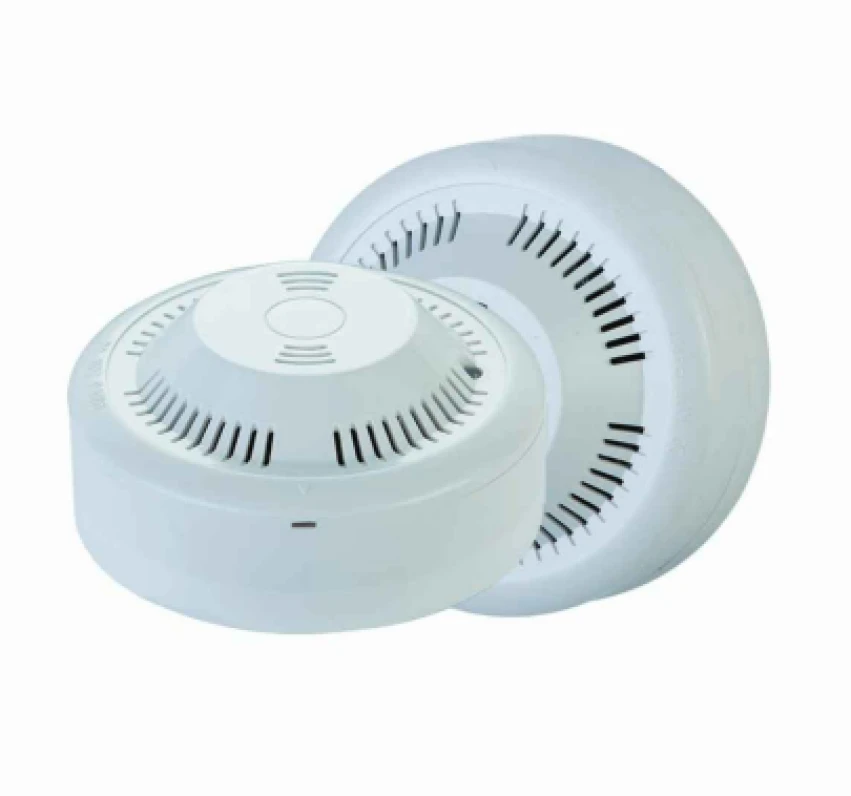

RE-386CO

CO (Carbon monoxide) Detector

Advanced algorithms provide advanced detection, discrimination.
Stable gas sensing chamber (No adjustment or replacement required).
High immunity against unwanted alarms.
4-wire system operation.
Detector auto-reset once gas levels fall below alarm threshold levels.
N/O alarm relay output.
Connects to Zone Module for use with addressable control and indicating equipment.
Sleek low-profile housing design.
Low maintenance.
IP Rating: IP42.

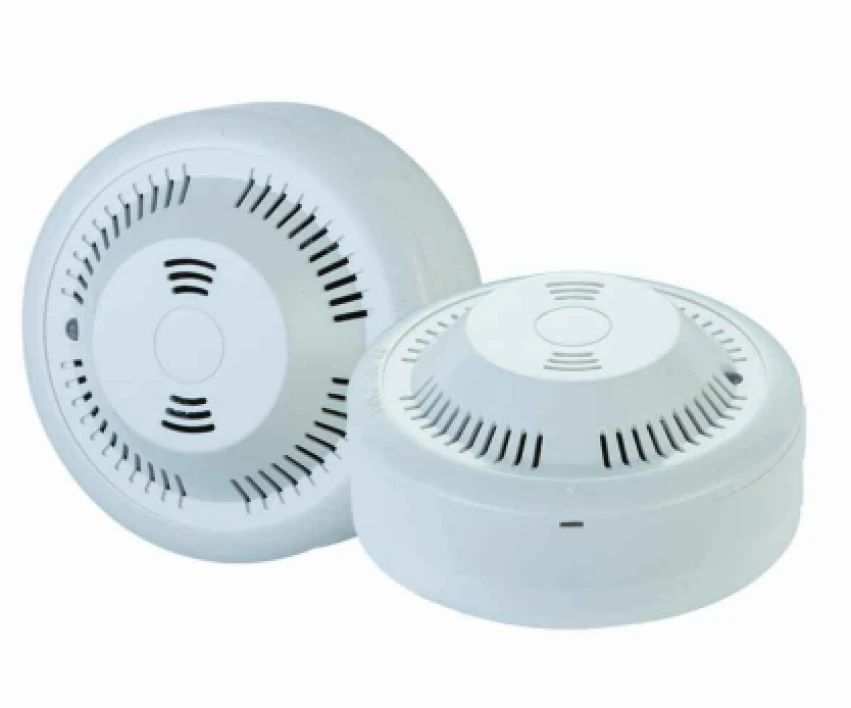

RE-386NG

NG (Natural Gas) Detector

Advanced algorithms provide advanced detection, discrimination.
Stable gas sensing chamber (No adjustment or replacement required).
High immunity against unwanted alarms.
4-wire system operation.
Detector auto-reset once gas levels fall below alarm threshold levels.
N/O alarm relay output.
Easy installation. No programming required.
Connects to zone monitor for use with addressable control and indicating equipment.
Sleek low-profile housing design.
Low maintenance.
IP Rating: IP42.

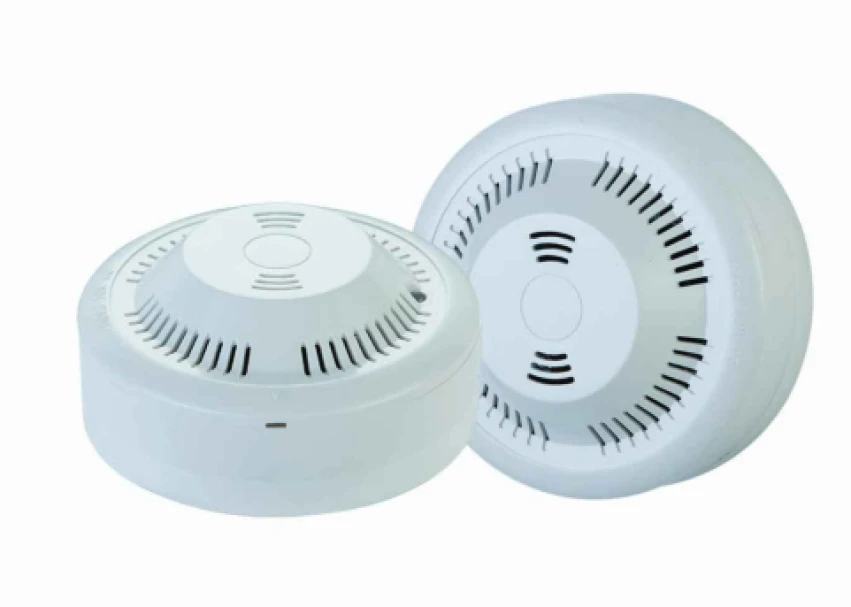

RE-386LPG

LPG (Liquid Petroleum Gas) Detector

Advanced algorithms provide advanced detection, discrimination.
Stable gas sensing chamber. No adjustment or replacement required.
High immunity against unwanted alarms.
4-wire system operation.
Detector auto-reset once gas levels fall below alarm threshold levels.
Internal reed switch for hush and test functions.
DC 24 V operation.
N/O alarm relay output.
70 dB internal sounder.
Connects to zone monitor for use with addressable control and indicating equipment.
Sleek low-profile housing design.
Low maintenance.
IP Rating: IP42.

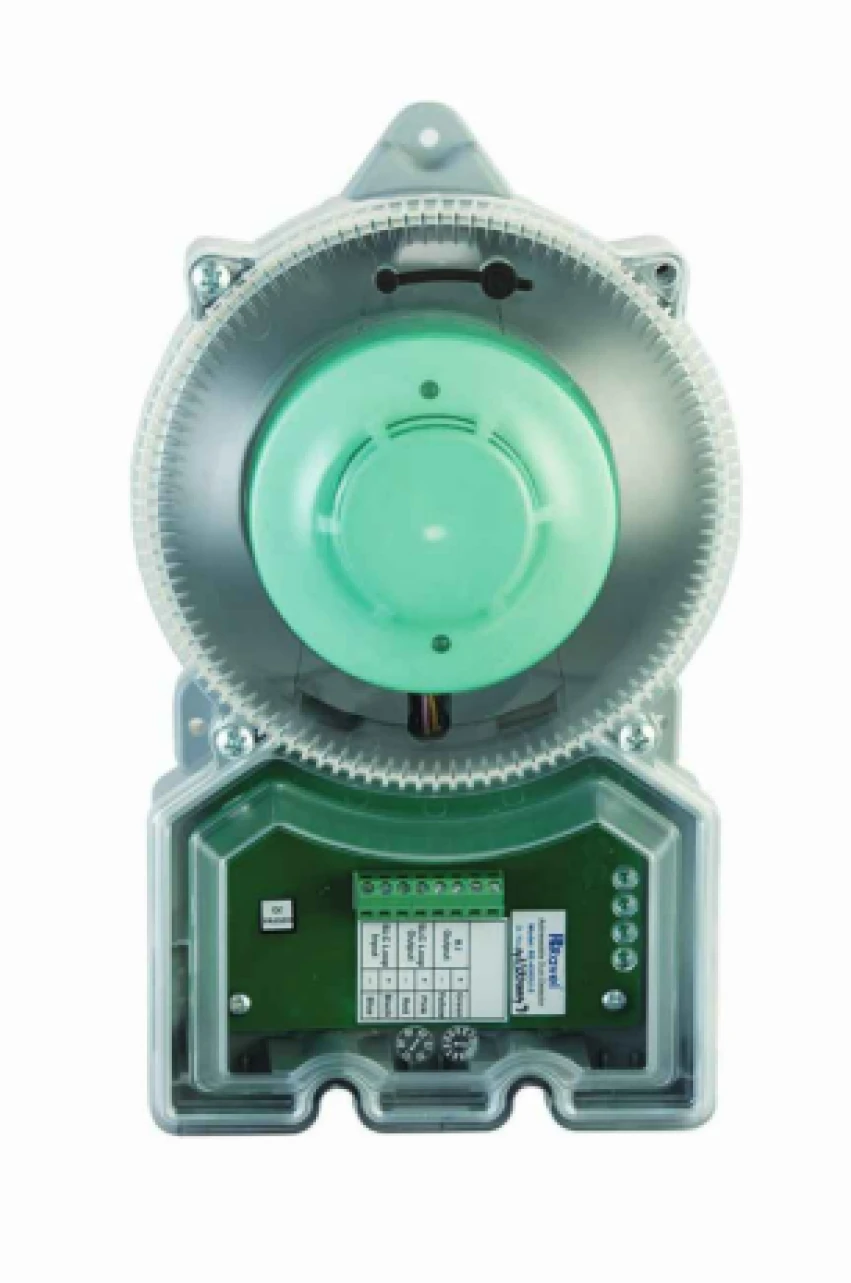

RE-428DU-C

Conventional Duct Detector

Highly efficient single sampling tube.
Easy to install.
One-pipe air sampling system.
Sampling tube available in different lengths 1, 2, 5 & 9 feet to match all size of ducts.
Patented venturi pipe and duct housing.
Test hole on cover.
Simple installation, Simple service and maintenance.
Device addressing via 8 way DIP switch.
IP Rating: IP54.

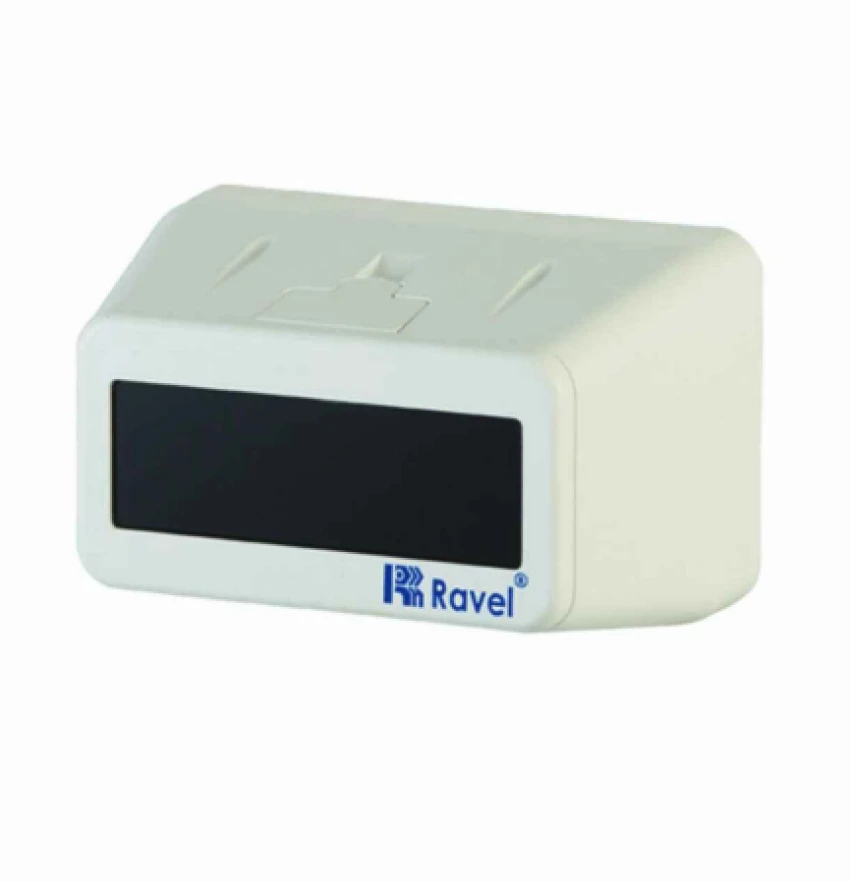

RE-428FR/HR

Optical Beam Detector

LPCB approved.
User Friendly Installation.
In built laser light for easy alignment.
Supports 50 & 100 meter range.
Option for Remote Indication.
Adjusting Screws at detector for precise alignment.
Infrared transmitter & receiver located in a single housing.
In built drift compensation for monitoring dirt build up on the optical system.
Sensitivity Threshold:- 18%,30%, 50%.
IP Rating: IP50.

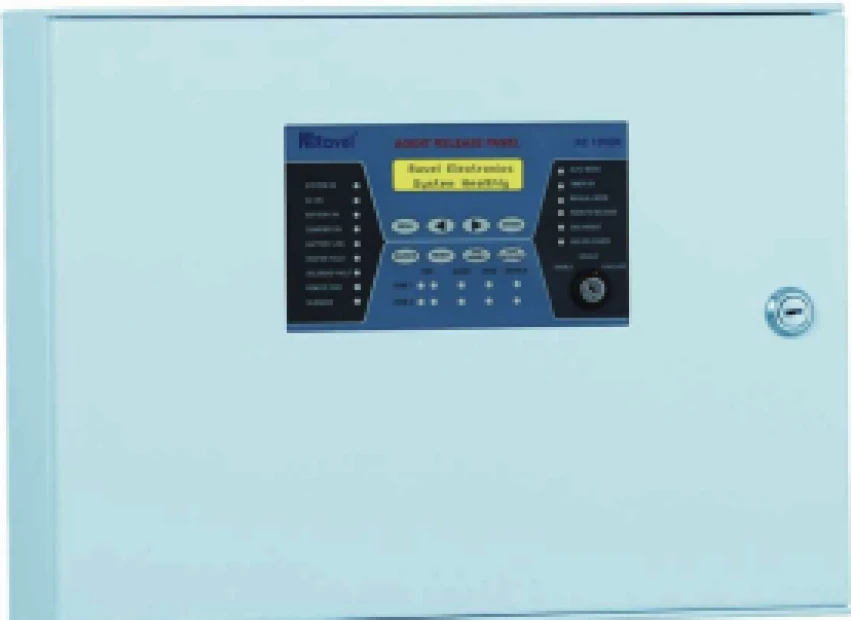

RE-120GR

Agent Release Panel

2 Zone with 1 Class B RAC (Programmable Releasing Agent Circuits) output.
16 X 2 LCD Dot Matrix Display.
Two mode operation facility (Auto /Manual).
Programmable Solenoid Output with ON and OFF Timer.
Programmable Main / Standby Cylinder output Facility.
Gas Inhibit and Instant release facility.
Manual Gas Release with or without timer.
Actuator pressure low sensing facility.
50 Events Log with RTC for Fire & Gas Release.
RS 485 Output for Repeater.
Operates on 220 VAC supply.
Compatible to all types of conventional detectors.
Zone Disable (Isolation) facility with loop voltage cut off.
Resettable 24 VDC output for 4 wire detectors.
Evacuate and Keypad Enable, Disable Facility.
CE Listed.
IP Rating: IP50.

RE-716 P1T SERIES

Manual Pull Station

UL Listed. LIFT
RELEASE
Single/ Dual action lift and pull. PULL
&
DOWN
Release/abort written on top for easy visibility with color code.
PULL
PULL DOWN
Break glass Rod.
All stations offer hex screw or key lock access. RRavel Ravel
Available colours Red, Green and Yellow for different application.
Ravel
IP Rating: IP40.

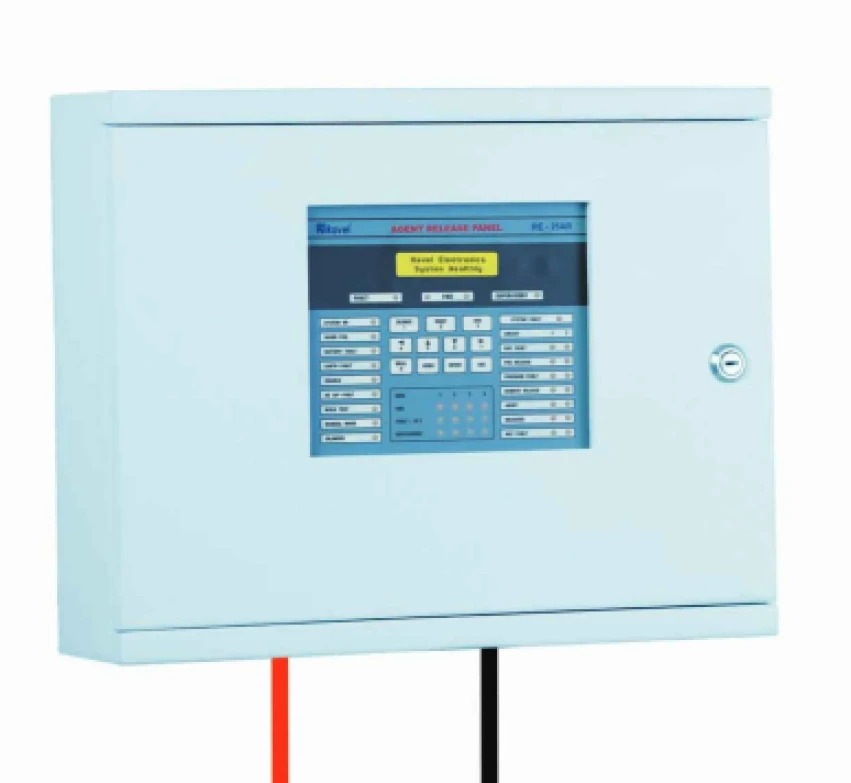

RE-25AR

Agent Release Panel

UL Listed (9th Edition).
4 Zone with 2 Class B RAC (Programmable Releasing Agent Circuits) output.
16x2 Dot Matrix LCD display.
2 Class B Notification Appliance Circuits (NAC).
4 Programmable Inputs for abort, release, Pressure switch.
3 Form C programmable relays for fire/ fault/ supervisory/ Gas Released.
Two modes of operations Auto /Manual.
Programmable 24V DC Outputs.
RS 485 Communication facility (Optional).
198 Events history log with RTC.
Programmable RAC's with count down timer.
Programmable AC loss delay.
Programmable trouble reminder.
IP Rating: IP50.

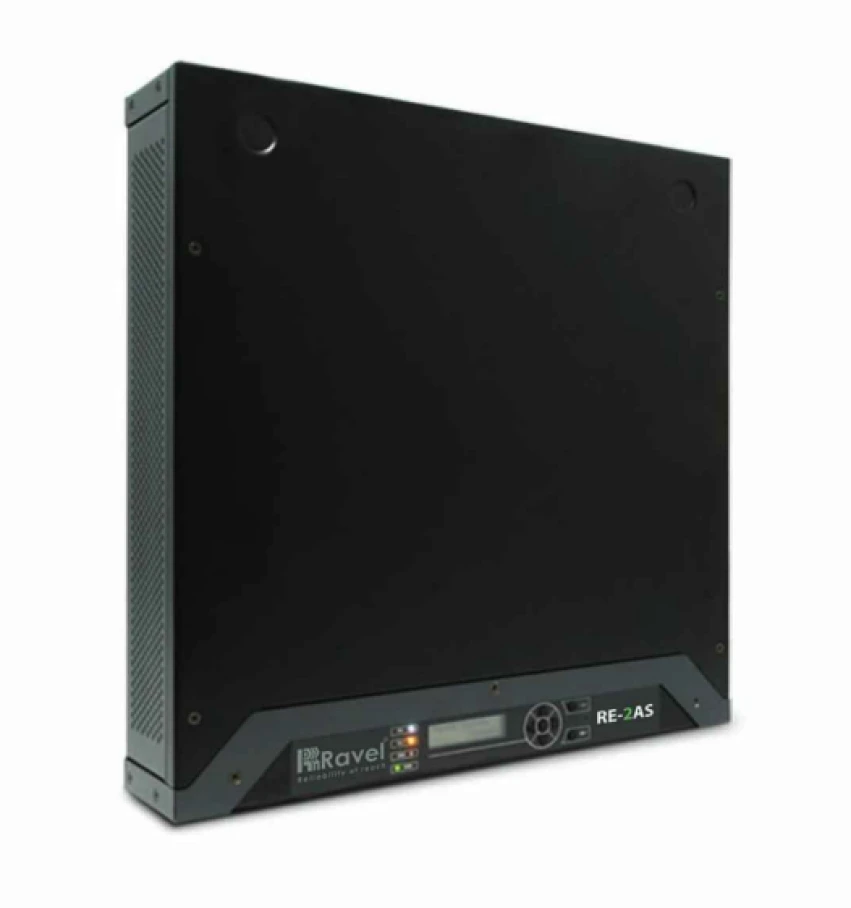

RE-2AS

Public Address Voice Evacuation

3 audio inputs.
Up to 8 MPS-8Z multizone microphones or VAP-1 panels connected with CAT5 UTP cable.
2 class D amplifiers with two configurations for 100V/70V lines up to 500W.
Digital audio matrix 6x6, expandable.
4-pre-amp outputs for external PA amplifiers connection.
DSP: 3/7-band input/output parametric equalizer, loudness, Ravel sound enhancer, independent volume control per each input and output master.
Access control by LCD display.
Control for up to 16 Ravel AT6 attenuators.
8+2 GPIO ports, supervised for integration with Fire Alarm Control Panel.
Interface MODBUS RTU RS 485 Half duplex.
Voice Alarm / Emergency Features.
Applus certified under EN 54-16, EN 54-4 and EN 60849 standards.
Backup amplifier included.
10 minutes storage for pre-recorded messages.
Failure detection and indication in all emergency functions.
Fire Alarm Control Panel integration.
Double player for pre-recorded evacuation messages.
Manual control of emergency states with access control.
Emergency log.
Loudspeaker lines supervision.
Line terminator without return for supervision.
IP Rating: IP50.

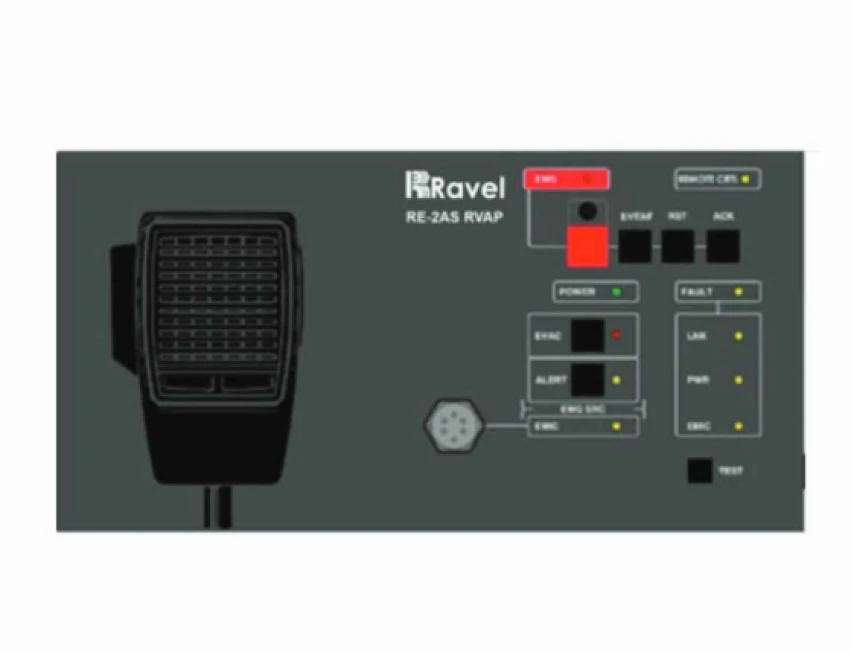

RE-2AS RVAP

Voice Alarm Panel

Up to 56 group memories of up to 8 zones per memory (448 zones of the system).
Prior notice tone.
Volume adjustment.
Emergency condition general indicator.
Fault condition general indicator.
Power supply fault indicator.
Emergency microphone fault indicator.
Broadcasting of voice evacuation message indicator.
Broadcasting of voice evacuation recorded message indicator.
Broadcasting of voice alarm message indicator.
Emergency controls, Reset, Acknowledge, Test, Alarm message, Evacuation message.
Side port to connect up to 7 expansion keyboards.
Priority configuration and operating parameters.
Applus Certified.
IP Rating: IP50.

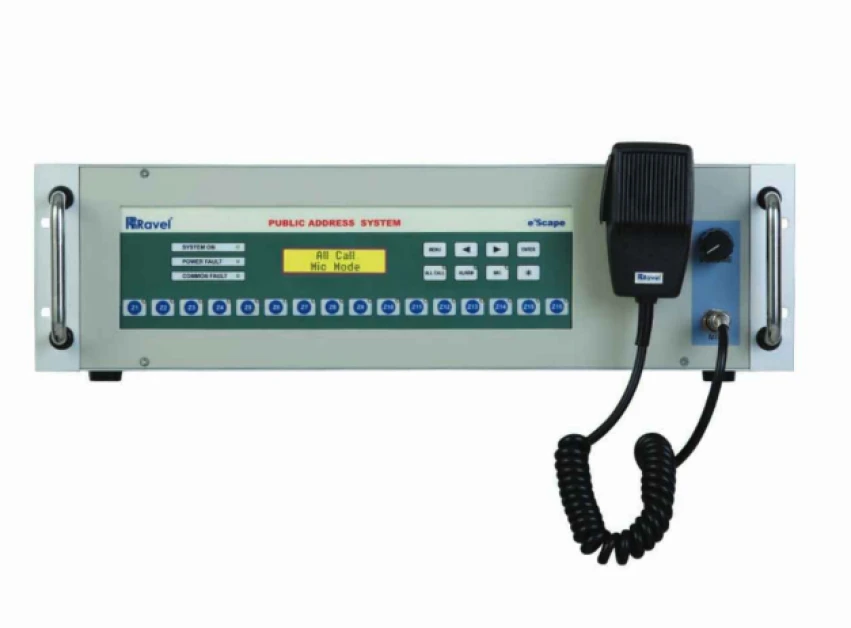

e'Scape

Zone Wise Amplifier

19", 3U Rack mountable.
System ON, Power Fault, Common fault indications.
Membrane Keypad for user friendly operation.
Inbuilt 250 watts amplifier.
Additional Amplifier can expand up to 250W.
One Inbuilt Microphone for announcement.
Zone Wise (Speaker line) Selection facility with LED indication.
Voice / Alarm / All call selection facility.
MIC mode selection facility.
Programmable Mode (Alarm, Mic, Music, DVA) selection facility.
100V audio output for Speaker.
Alarm activated on automatically announcing mode.
Compatible with Avani via RS 485 Communication.
Voice recording option available only with 250w Amplifier combination.
DVD Input Facility.
Zone expansion in Multiples of 16.
CE Certified.
IP Rating: IP40.

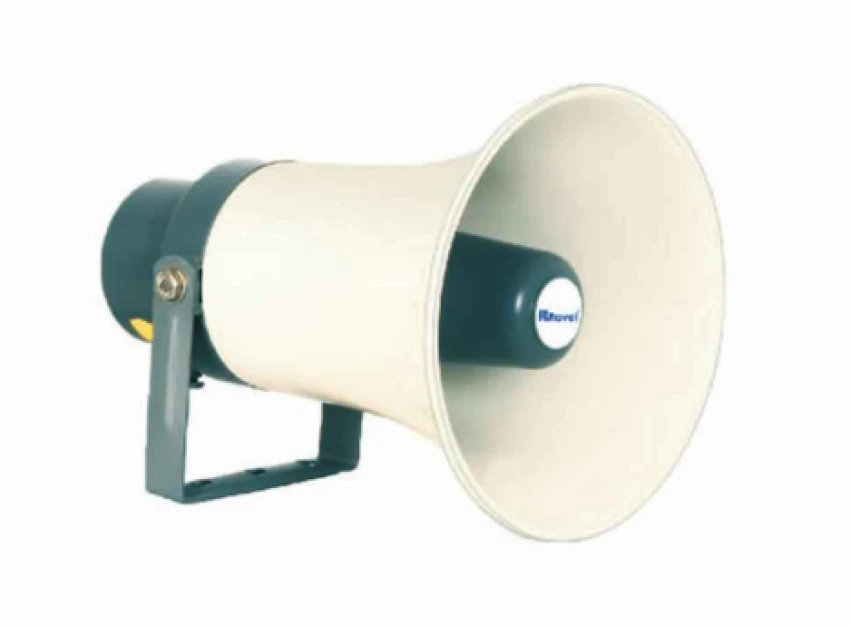

RE-LU 1ООХТ

PA Horn Speaker

Horn Type Speaker.
2.5W, 5W, 7.5W, 10W, 12.5W, 15W.
ABS plastic.
Wall/Ceiling mountable.
IP Rating: IP40.

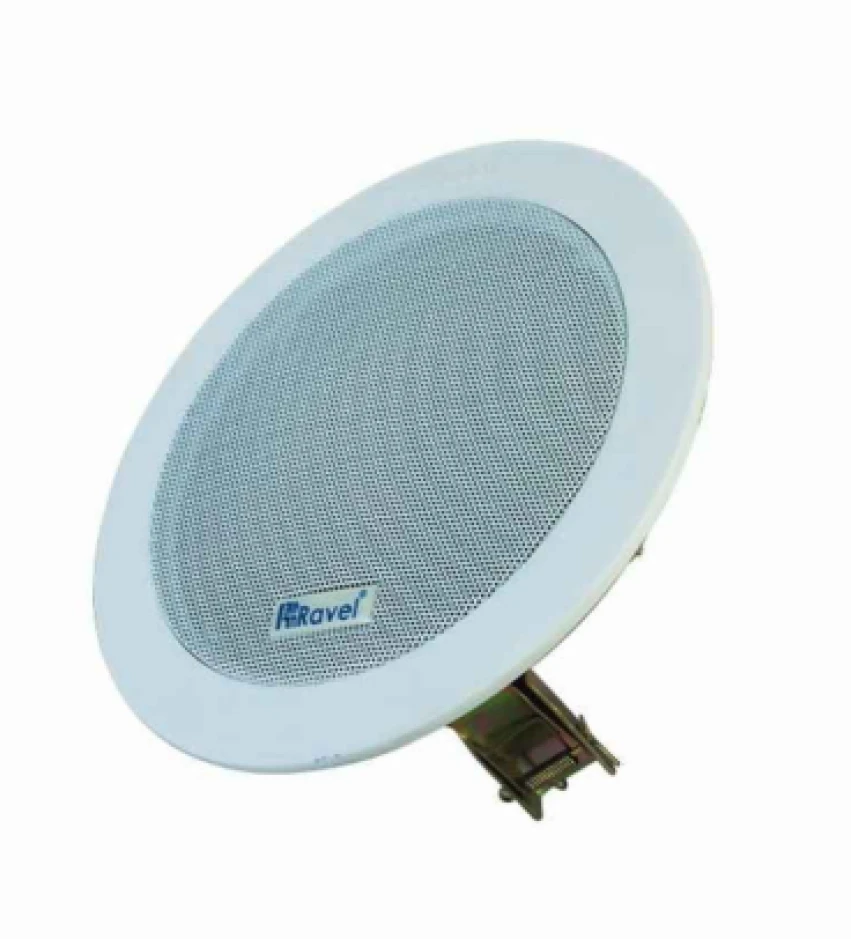

RE-LS6С

PA Ceiling Mount Speaker

Flush mount 15cm dynamic cone speaker.
Three field selectable power taps.
ABS plastic grill with metal punched net.
Easy to install with spring catch mount.
Connectors with screw for hooking up the wires tightly.
Protective dust cover at rear.
The white colour of the grill has been selected to be obtrusive in virtually all interiors.
Optional Volume control.

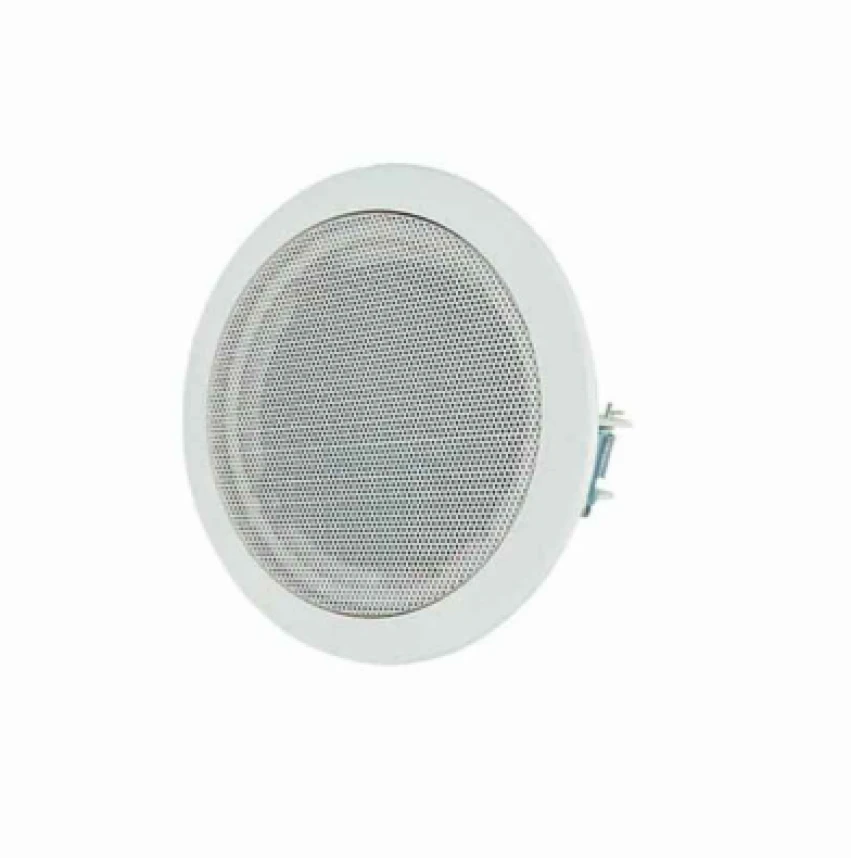

RE-LS3С
